Turnbuckle Hook and Eye

Document

Print

Sample Request

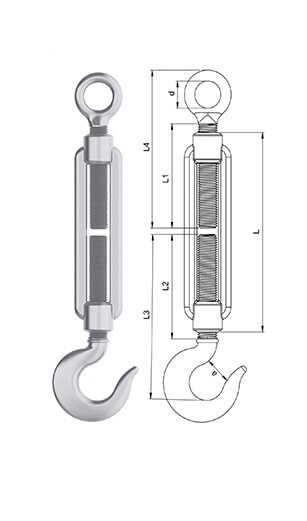

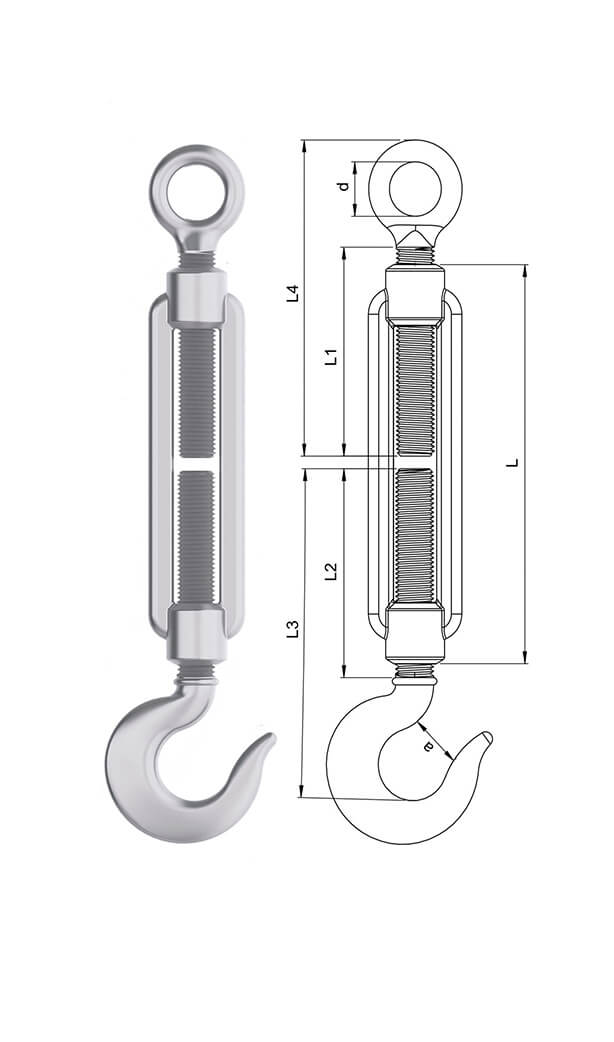

Size	Eye and Hook Turnbuckle Dimensions
mm	L	Tolerance	a	Tolerance	d	Tolerance	L1	L2	L3	L4
M6	110,0	+1,0 - 0,5	8,0	+ 0.5 - 0	9,0	+ 0.5 - 0	55,0	55,0	77,0	80,0
M8	110,0	+1,0 - 0,5	8,5	+ 0,5 - 0	10,0	+ 0.5 - 0	57,0	57,0	85,0	85,0
M10	125,0	+1,0 - 0,5	12,0	+ 0,5 - 0	14,0	+ 0.5 - 0	68,0	68,0	106,0	105,0
M12	125,0	+1,0 - 0,5	15,0	+ 0,5 - 0	16,0	+ 0.5 - 0	70,0	70,0	117,0	111,0
M14	140	+1,0 - 0,5	17,0	+ 0,5 - 0	18,0	+ 0.5 - 0	75,0	75,0	124,0	124,0
M16	170,0	+1,0 - 0,5	19,0	+ 0,5 - 0	22,0	±0,5	88,0	88,0	144,0	1449,0
M20	200,0	±1,0	20,0	+ 0,5 - 0	24,0	+ 0.5 - 0	105,0	105,0	170,0	168,0
