Turnbuckle Eye and Eye

Document

Print

Sample Request

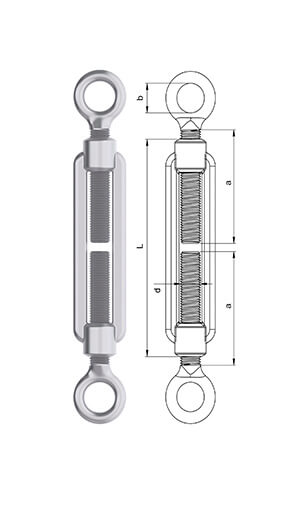

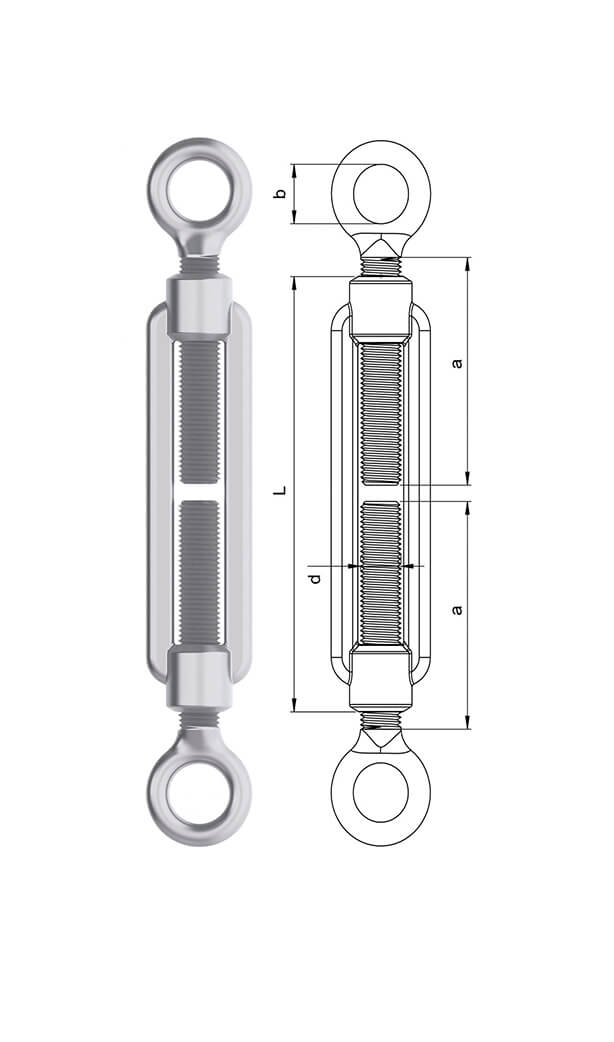

Size	Eye and Eye Turnbuckle Dimensions
mm	L	Tolerance	a	Tolerance	b	Tolerance	d
M6	110,0	+1,0 - 0,5	55,0	±0,5	9,0	+ 0.5 - 0	M6
M8	110,0	+1,0 - 0,5	57,0	+ 1,0 - 0	10,0	+ 0.5 - 0	M8
M10	125,0	+1,0 - 0,5	68,0	+ 1,0 - 0	14,0	+ 0.5 - 0	M10
M12	125,0	+1,0 - 0,5	70,0	+ 1,0 - 0	16,0	+ 0.5 - 0	M12
M14	140,0	+1,0 - 0,5	75,0	+ 1,0 - 0	18,0	+ 0.5 - 0	M14
M16	170,0	+1,0 - 0,5	88,0	+ 1,0 - 0	22,0	±0,5	M16
M20	200,0	±1,0	105,0	±1,0	24,0	+ 0.5 - 0	M20
