Masterlink

2 Leg Chain Sling Masterlink with Clevis Part Grade 80

Document

Print

Sample Request

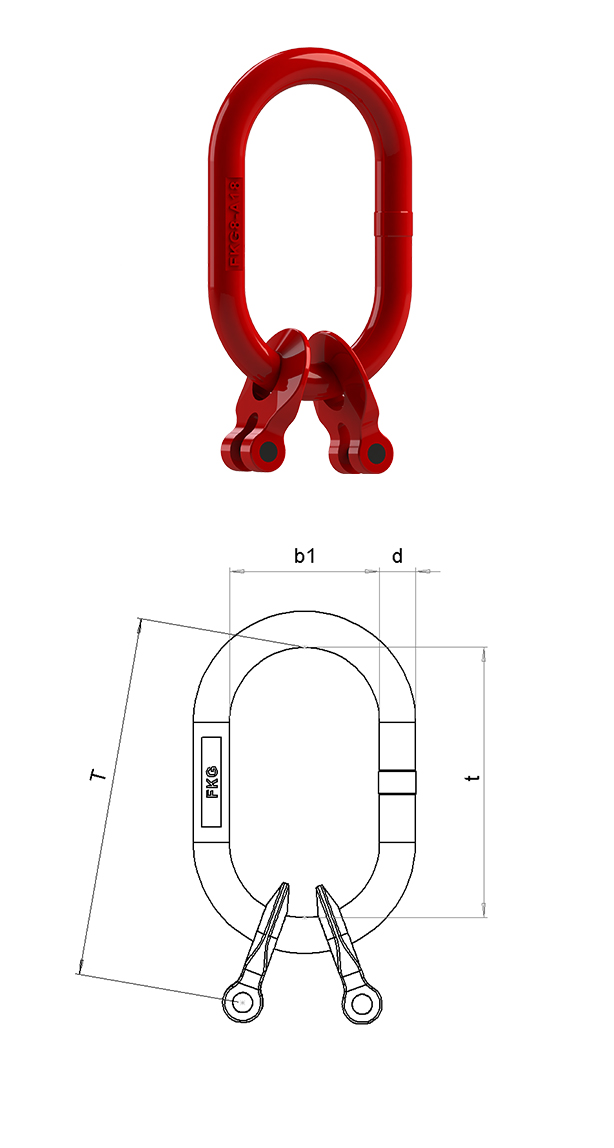

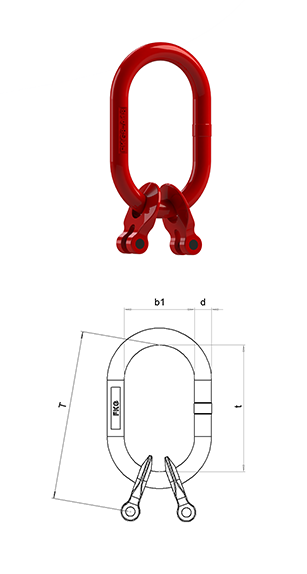

For Chain 2 leg ( mm )		Name		Dimensions				Kg/Piece		Working Load Limit ( WLL )
				d	t	b₁	T			0-45°	45-60°
6		A13RG2		13	110	60	140	0,70		1,600	1,120
8		A18RG2		18	135	75	176	1,40		2,800	2,000
10		A22RG2		22	160	90	210	2,45		4,250	3,150
13		A26RG2		26	180	100	243	4,20		7,500	5,300
16		A32RG2		32	200	110	277	7,05		11,200	8,000
