Forestry Chains Grade 80
Round Profile Forestry Chains

Document

Print

Sample Request

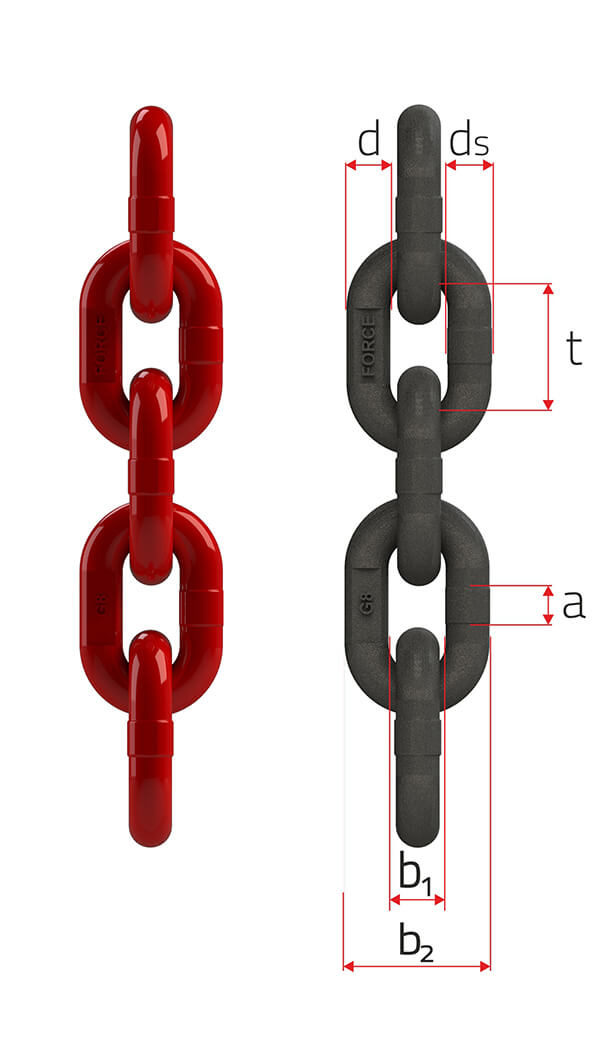

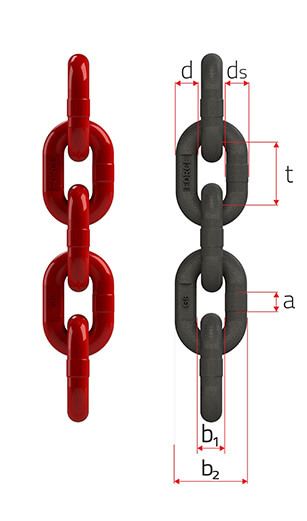

Force Chain Wire Diameter Inner Length Inside Width Outside Width Appr.
Articel No Ø(dn) Tolerance t Tolerance b1min. b2max. Kg / Mtr
FC.FR.G8.R.06.EP 6 ± 0,24 18 ± 0,5 7,8 22,2 0,80
FC.FR.G8.R.07.EP 7 ± 0,28 21 ± 0,6 9,1 25,9 1,10
FC.FR.G8.R.08.EP 8 ± 0,32 24 ± 0,7 10,4 29,6 1,40
FC.FR.G8.R.10.EP 10 ± 0,40 30 ± 0,9 13,0 37,0 2,20

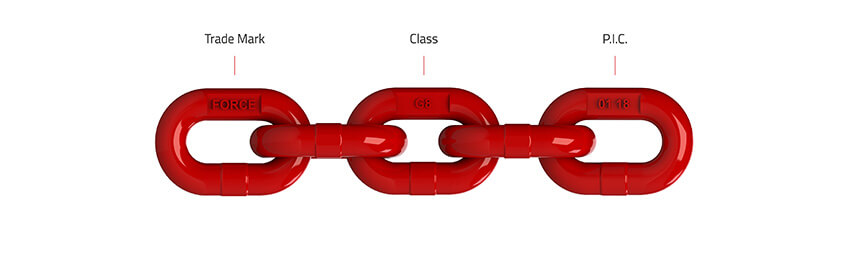

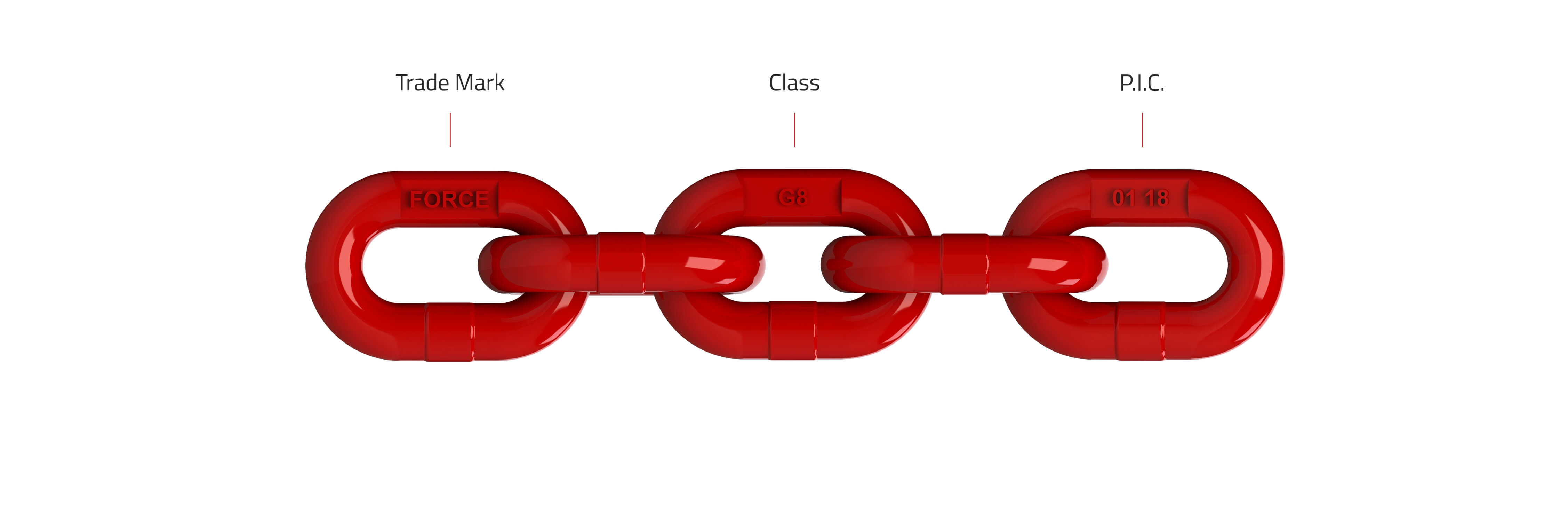

Stamping

Specs

Wire Diameter Tensile Force Test Force Breaking Load Bending Test
Ø( dn) mm ( kN ) max. MTF ( kN ) BLL ( kN ) min. f ( mm ) min.
6 22 33,0 45,2 4,8
7 30 45,0 61,6 5,6
8 40 60,0 80,4 6,4
10 63 95,0 126,0 8,0
Security Level 1 / 1,5 / 2,0
Tensile Force ( TF ) 400 N / mm2
Manufacture Test Force ( MTF ) 600 N / mm2
Breaking Load Limit ( BLL ) 800 N / mm2
