DIN Standard Chains

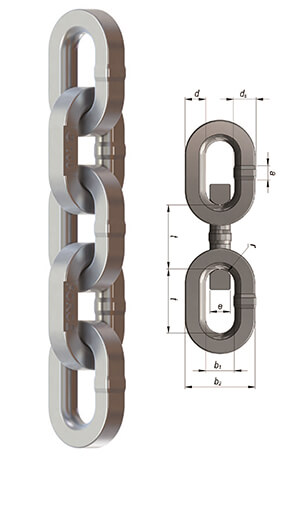

Forestry Chains Grade 100
D Profile Forestry Chains

Document

Print

Sample Request

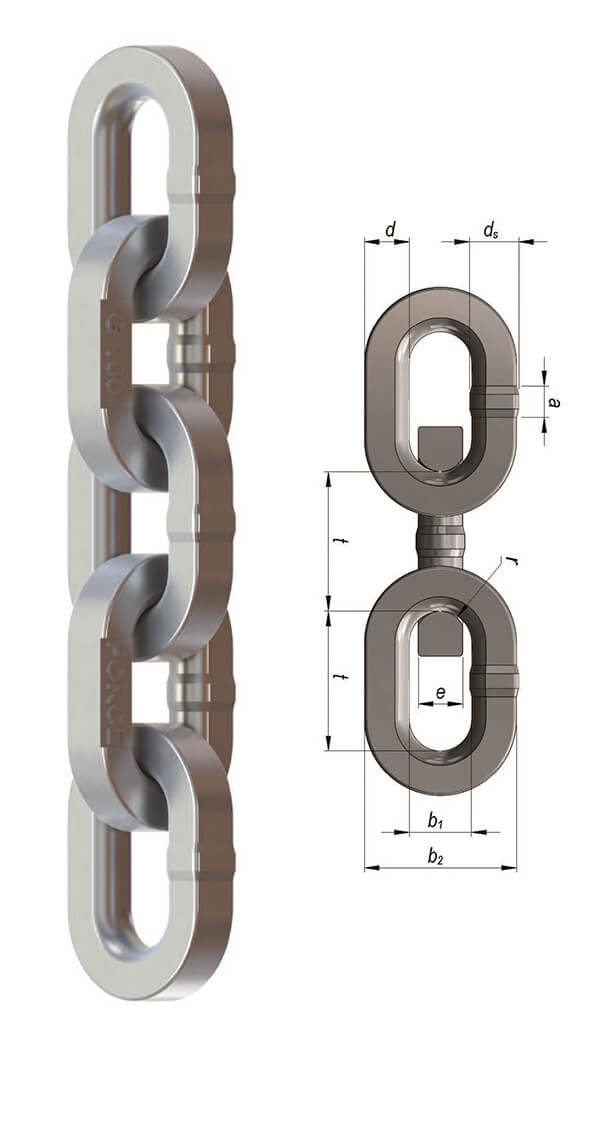

Force Chain Wire Diameter Inner Length Inside Width Outside Width Appr.
Articel No D(dn) Tolerance t Tolerance b1min. b2max. Kg / Mtr
FC.FR.G10.D.07.EP [ 7 x 7 ] ± 0,20 24 + 0,2 - 0,2 11,5 27,0 1,16
FC.FR.G10.D.08.EP [ 8 x 8 ] ± 0,20 28 + 0,3 - 0,3 12,5 30,0 1,80

Specs

Wire Diameter Tensile Force Test Force Breaking Load Bending Test
D ( dn) mm ( kN ) max. MTF ( kN ) BLL ( kN ) min. f ( mm ) min.
[ 7 x 7 ] 40 60,0 80,0 5,6
[ 8 x 8 ] 60 90,0 120,0 6,4
Security Level 1 / 1,5 / 2,0
Tensile Force ( TF ) 500 N / mm2
Manufacture Test Force ( MTF ) 750 N / mm2
Breaking Load Limit ( BLL ) 1000 N / mm2
