DIN Standard Chains

DIN 764
Grade 30

Document

Print

Sample Request

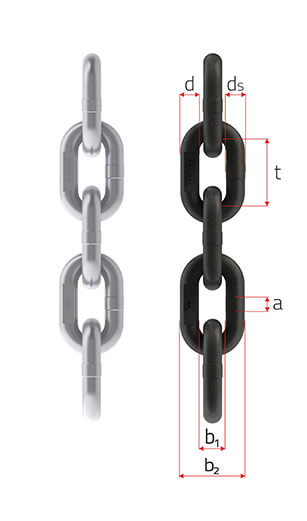

Force Chain Wire Diameter Inner Length Inside Width Outside Width Inner Length Appr.
Articel No Ø(dn) Tolerance t Tolerance b1 min. b2 max. 11 x t Tolerance Kg / Mtr
FC.764.DG3.R.10.W 10 ± 0,40 35 + 0,6 - 0,3 14,0 36,0 385,0 + 1,7 - 0,9 2,00
FC.764.DG3.R.13.W 13 ± 0,50 45 + 0,7 - 0,4 18,0 47,0 495,0 + 2,2 - 1,1 3,50
FC.764.DG3.R.16.W 16 ± 0,60 56 + 0,9 - 0,5 22,0 58,0 616,0 + 2,8 - 1,4 5,20

Stamping

Specs

Wire Diameter Working Load Limit Test Force Breaking Load Bending Test
Ø ( dn) mm WLL ( Kg ) max. MTF ( kN ) BLL ( kN ) min. f ( mm ) min.
10,0 12,5 32,0 50,0 10,0
13,0 21,2 53,0 85,0 13,0
16,0 32,0 80,0 125,0 16,0
Security Level 1 / 2,5 / 4
Working Load Limit ( WLL ) 75 N / mm2
Manufacture Test Force ( MTF ) 188 N / mm2
Breaking Load Limit ( BLL ) 300 N / mm2
